Check load profile, site voltage, grid conditions and backup target.
ENGINEERING · ASSEMBLY · INSPECTION
Solar System Integration & Export Coordination
See how the equipment scope is checked from project brief through model selection, inspection and dispatch.
ORDER WORKFLOW
A traceable path from brief to shipment.
Each order should state the exact production site, selected models and inspection deliverables.
Component matching
Confirm inverter, battery, PV, protection and communication compatibility.
Inspection plan
Agree on model documents, functional checks and packing evidence.
Export preparation
Match equipment labels, manuals, packing lists and trade documents.
QUALITY RECORDS
Ask for evidence tied to the selected models.
Certificates, warranty terms and test records apply to particular products and configurations. The order file should show which documents support the equipment actually shipped.
- Named bill of materials and product datasheets
- Single-line diagram and interface description
- Model-specific certificates where applicable
- Inspection records and packing photographs

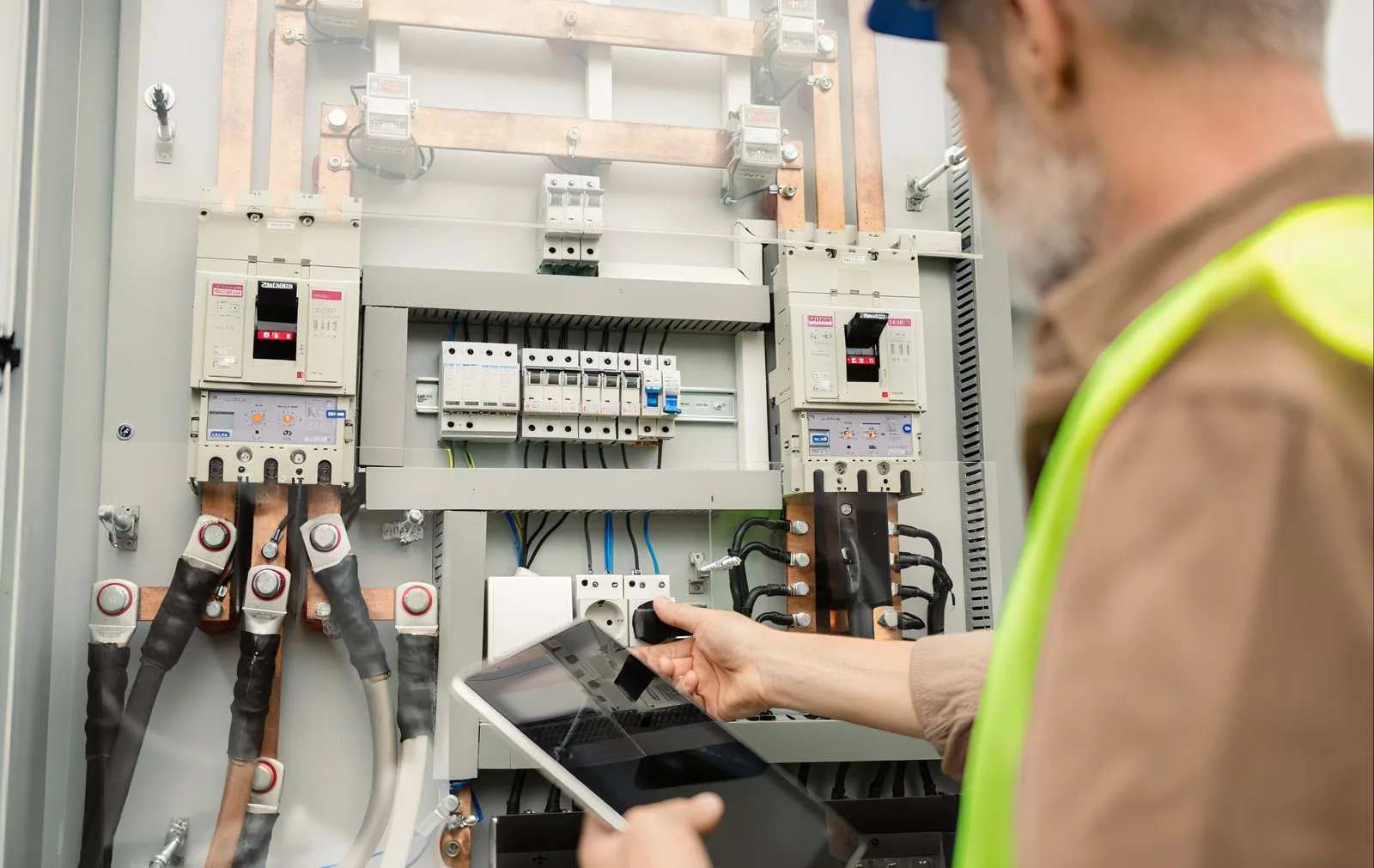

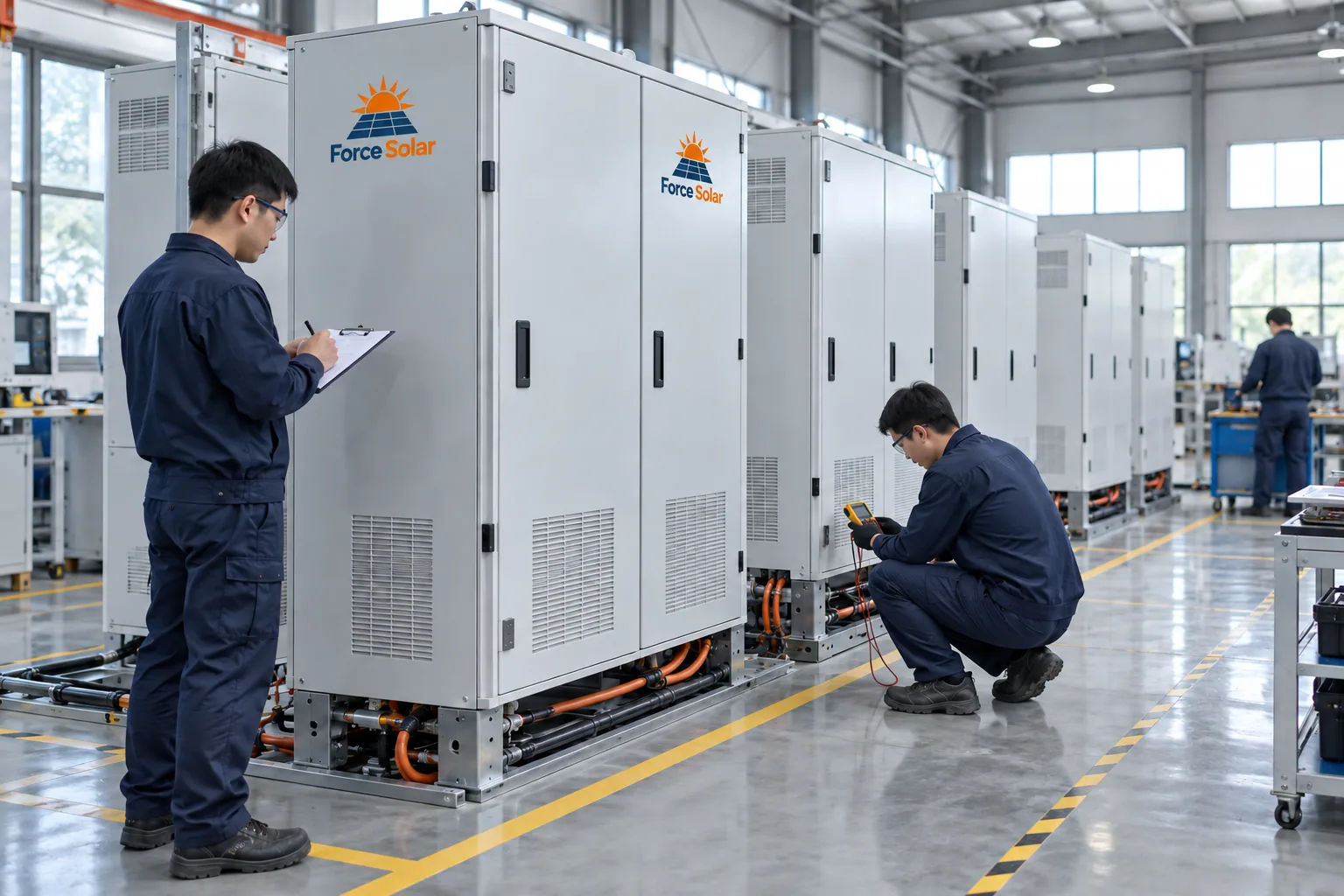

Visuals illustrate workshop and inspection activities; production site and test scope are confirmed per order.
PRODUCTION SEQUENCE
Five stages, each with a record
Every stage produces a document the next stage depends on. That is what makes the order traceable from the brief through to the packing list.
| Stage | What is checked | Record produced | Typical duration |
|---|---|---|---|
| Engineering review | Load profile, site voltage, grid conditions, backup target | Design basis and single-line diagram | 1 to 3 days |
| Component matching | Inverter, battery, PV, protection and communication compatibility | Named bill of materials | 1 to 2 weeks |
| Assembly | Configuration against the approved BOM | Build record and configuration log | 1 to 3 weeks |
| 72-hour testing | Full-load functional test before shipment | Test record and inspection photographs | 72 hours |
| Export preparation | Labels, manuals, packing lists, trade documents | Packing list and commercial documents | 2 to 6 weeks |
Total programme runs 4 to 12 weeks. Durations are planning ranges, not commitments.
DOCUMENTATION
What should travel with the shipment
Certificates and test records apply to particular models and configurations. The order file should show which documents support the equipment actually shipped.
| Document | What it shows | Why it matters |
|---|---|---|
| Named bill of materials | Exact model and electrical interface | Lets the buyer verify what was quoted against what was shipped |
| Single-line diagram | Protection, distribution and interfaces | The reference the installer and inspector work from |
| Model-specific certificates | CE, IEC 62619, UN38.3, MSDS as applicable | Needed for customs and for grid interconnection review |
| Test and inspection records | Functional checks and 72-hour test result | Evidence the system was energised before it left |
| Packing photographs and list | As-packed condition of the shipment | The basis for any transit claim |
Documents are listed per order. Which certificates apply depends on the models and the destination.
START A PROJECT
Discuss your system documentation.
Share the destination and intended architecture so the correct evidence can be identified early.
