HYBRID SOLAR SYSTEM

15KW 15KVA + 50KWH Solar System with Battery

Name: 15KW 15KVA + 50KWH Solar System with Battery | Force Solar
Brand: Force Solar

An all-in-one hybrid system for homes, clinics and small businesses: 15kW of three-phase power with 50kWh of LFP storage in a single cabinet. This 15kW solar system with battery includes everything for a solar installation: solar panels, solar brackets, solar batteries, solar inverter with mppt controller, cables, MC4 connector. Best solar energy system: 15KW, DC48V to AC 110V~480V, can be customized according to the needs of users.

Request a quote Browse all products

Installed 15kW solar system with battery storage

Rated power15kW / 15kVA

Storage50kWh LFP

Output3-phase 400V

FormatAll-in-one cabinet

SPECIFICATIONS

15KW 15KVA + 50KWH at a glance.

Final models and ratings are confirmed in the project bill of materials.

Model	FS-HY-15-50
Type	All-in-one hybrid solar system with battery
Rated power	15kW / 15kVA
Battery capacity	50kWh LiFePO4
PV input	MPPT solar inputs, expandable array
Output	3-phase 400V
Runtime at 5kW load	≈ 9 h (90% DoD)
Certificates	CE / IEC 62619 · UN38.3 · MSDS (model-specific)
MOQ	1 set — OEM & ODM accepted
Warranty	25-y panels · 10-y inverter · 5–10-y LFP battery

WHAT THE SYSTEM INCLUDES

One coordinated scope.

Every proposal names each component and its role in the complete system.

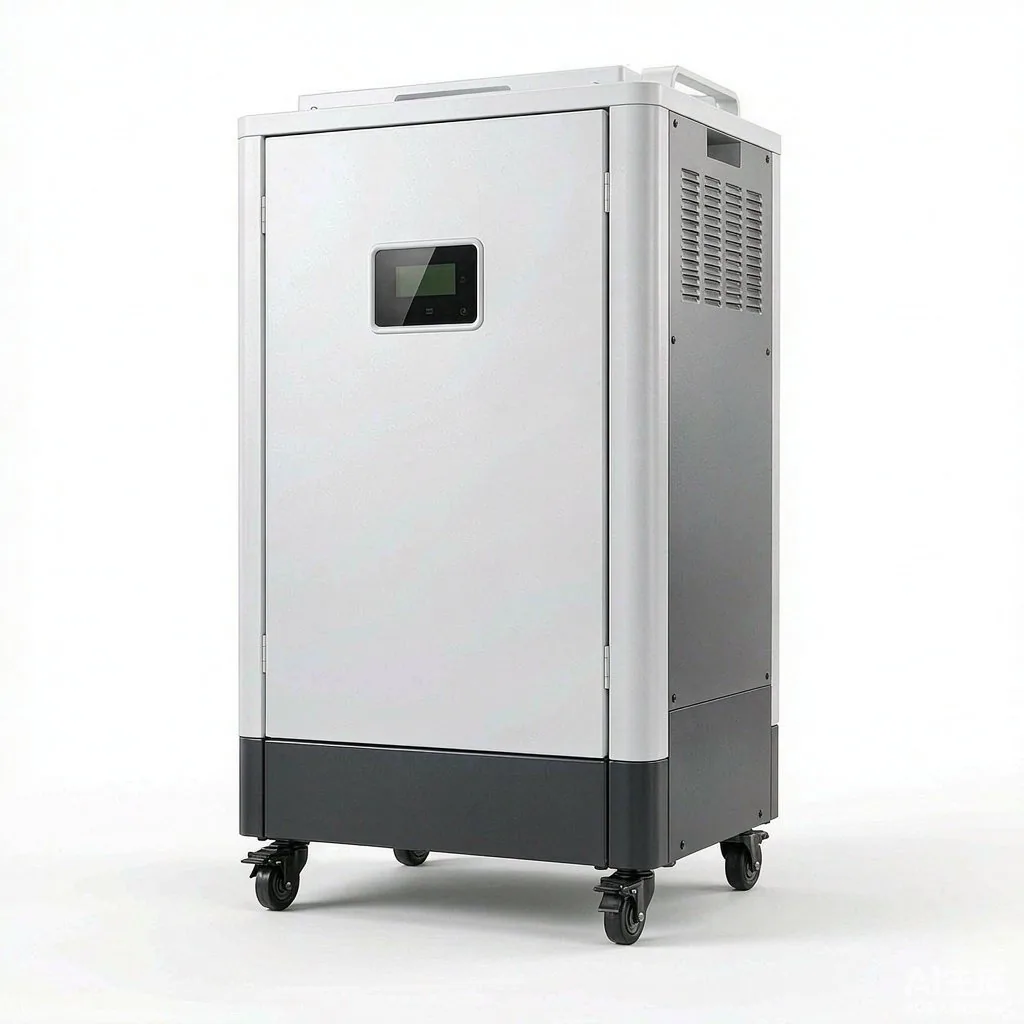

15kW 50kWh all-in-one hybrid unit, front view

Component	Details
Hybrid inverter	15kW three-phase bidirectional conversion with PV MPPT inputs
Battery bank	50kWh LFP with integrated BMS and thermal management
Enclosure	Single cabinet, indoor rated, pre-wired and factory tested
Monitoring	Remote generation, load and state-of-charge monitoring

One cabinet instead of separate inverter and battery rooms
Backup for clinics, shops and offices through long outages
Expandable PV array and parallel-ready architecture

Sizing and Component Selection

Every 15KW Solar System With Battery is configured from the logged load rather than from a nameplate. Inverter capacity follows the surge profile of motors and compressors, while battery capacity follows the overnight energy block. Those two numbers are independent and getting either wrong costs real money.

Force Solar builds the panels, battery modules, BMS and inverters in the same factory, so a 15KW Solar System With Battery ships as one tested system.

Who the 15kW + 50kWh package fits

Homes, clinics, hotels and small production sites that need both meaningful power (15kW) and long autonomy (50kWh). With a 5kW critical load the cabinet carries roughly nine hours of backup — enough to ride out a full evening and night on stored solar energy.

PRICE & PAYBACK

What drives the price and the payback.

Industry-typical figures for budget planning. A firm price follows the confirmed bill of materials and destination.

Cost factor	Typical figure (2026)
Solar modules	$0.28–0.48 per watt FOB, tier-1 supply
Sea freight & landed cost	Typically +20–35% over FOB to West Africa / Southeast Asia ports
Storage share	35–50% of total system cost where batteries are included
Payback	3–5 years against grid power; under 18 months when replacing diesel

Reference figures, not an offer. Tariff structure, demand charges, roof condition and destination change every project. Product photographs show factory kit configurations; final equipment appearance, rating, labelling and packing follow the ordered model.

TECHNICAL FAQ

Product FAQ

These answers describe system selection. Final equipment and compliance depend on the agreed model and destination.

Why combine 15kW with 50kWh?

The kW covers the peak and motor starts; the kWh covers how long you can run. This pairing suits sites with a moderate peak but a long outage window.

Can the battery be expanded later?

Parallel cabinets and additional modules can be added if the electrical design allows. State the growth plan at enquiry stage.

Is it shipped pre-tested?

Yes — the cabinet is configured and functionally tested as a complete system before export packing.

START A PROJECT

Need a custom configuration?

Send the load profile, grid conditions and destination port — we respond with a sized bill of materials.

Request a system proposal
