BESS Solar System
Battery energy storage systems from 96kWh to 5MWh: bidirectional inverters, LFP banks, thermal management and EMS in one tested cabinet.
11 products.
Every model below can be configured for your voltage, grid and destination — send the load profile for a sized proposal.

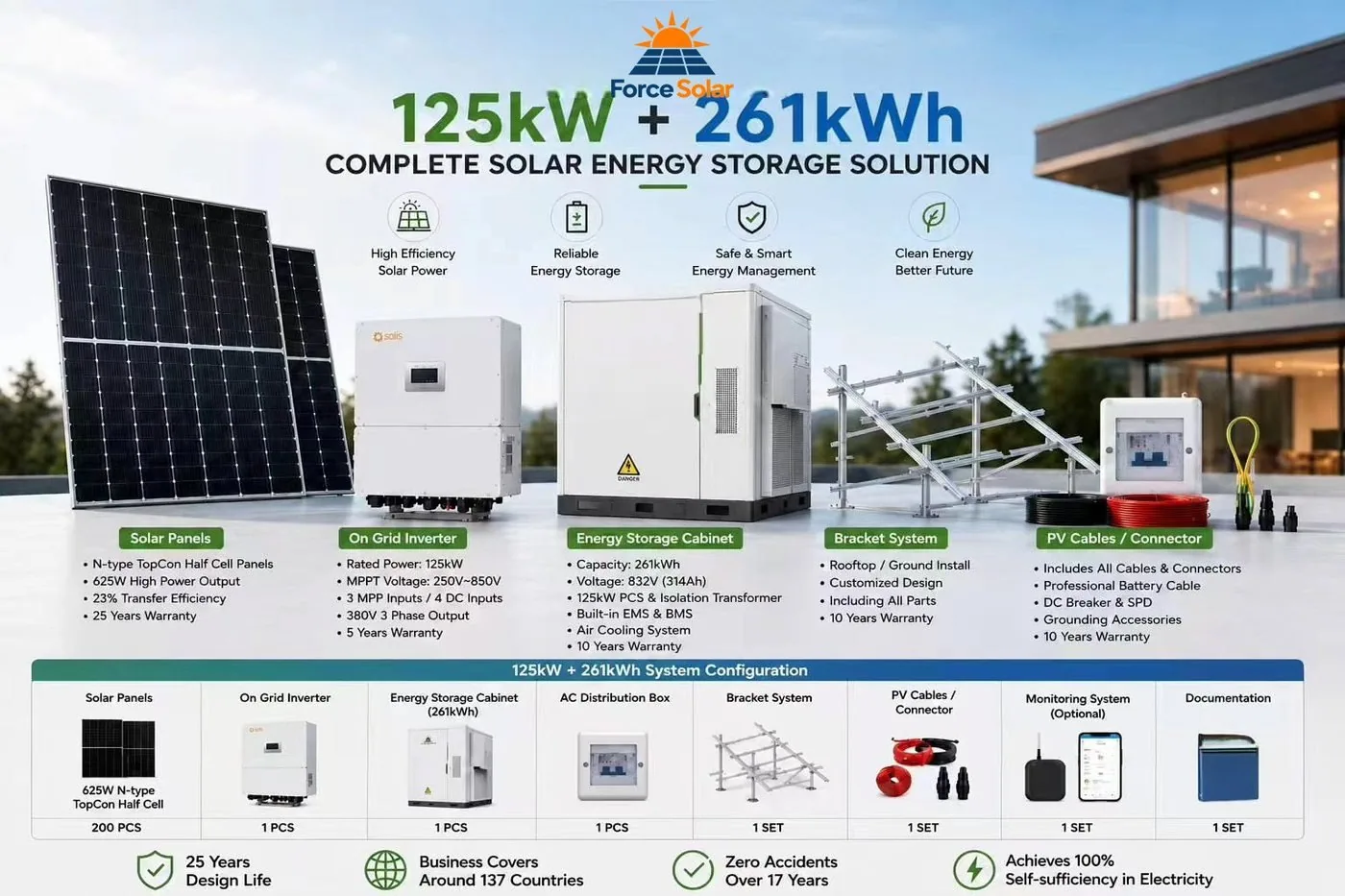

125KVA 125kW+261kWh BESS Solar System
125kW of power, 261kWh of LFP storage — backup and solar shifting in one cabinet.

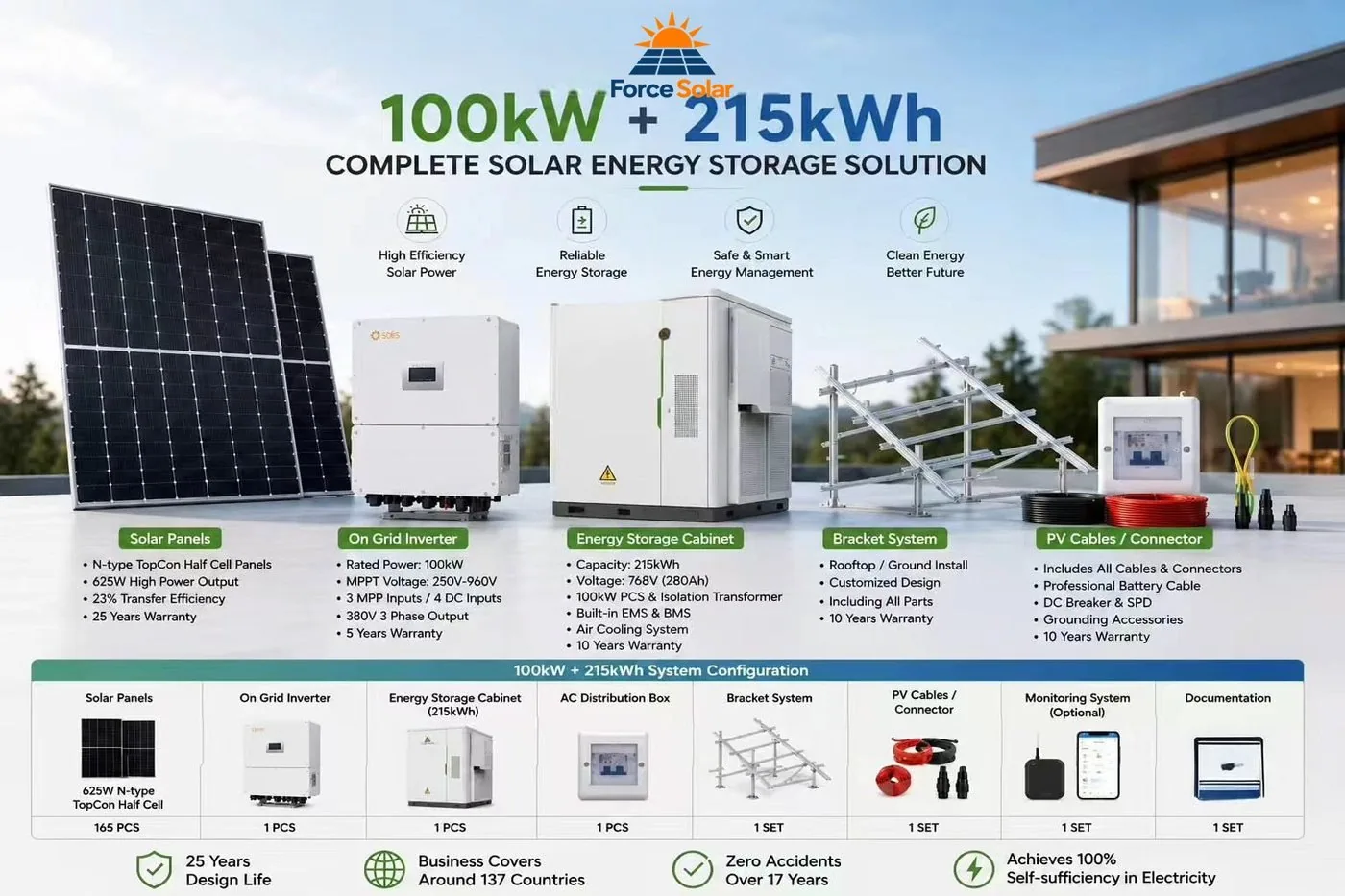

100KVA 100kW+215kWh BESS Solar System
100kW of power, 215kWh of LFP storage — backup and solar shifting in one cabinet.

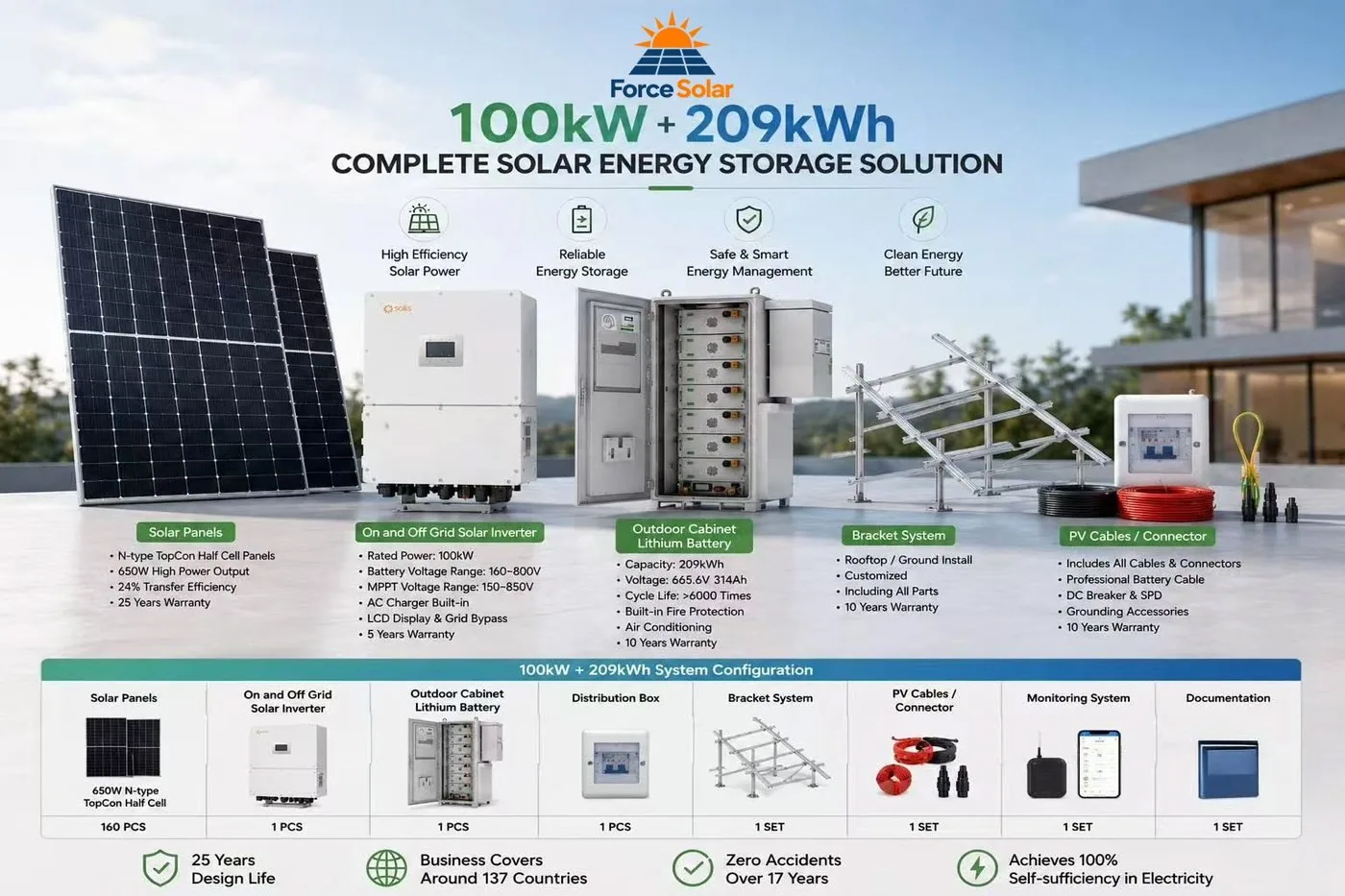

100KVA 100kW+209kWh BESS Solar System
100kW of power, 209kWh of LFP storage — backup and solar shifting in one cabinet.

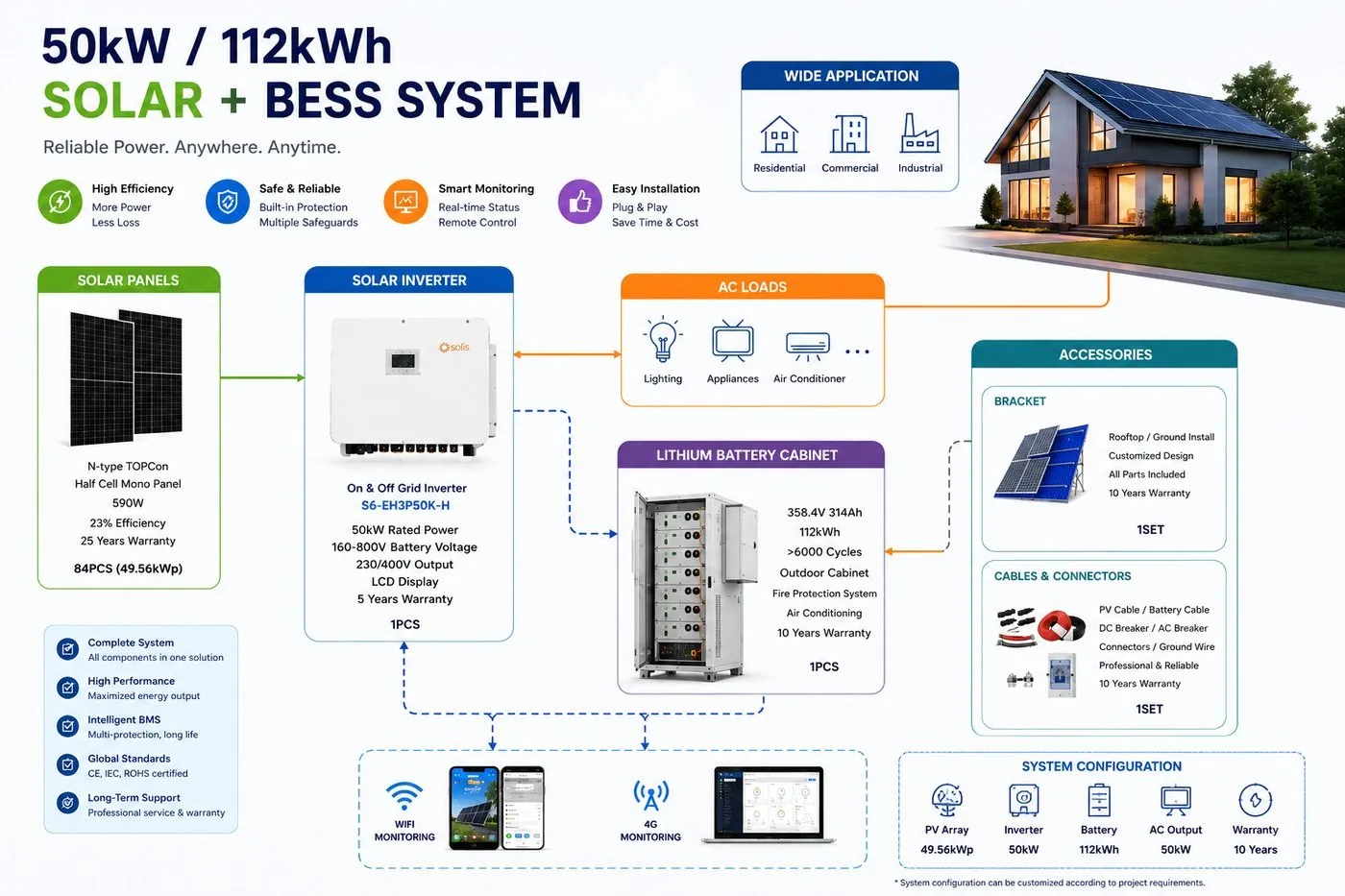

50KVA 50kW+112kWh BESS Solar System
50kW of power, 112kWh of LFP storage — backup and solar shifting in one cabinet.

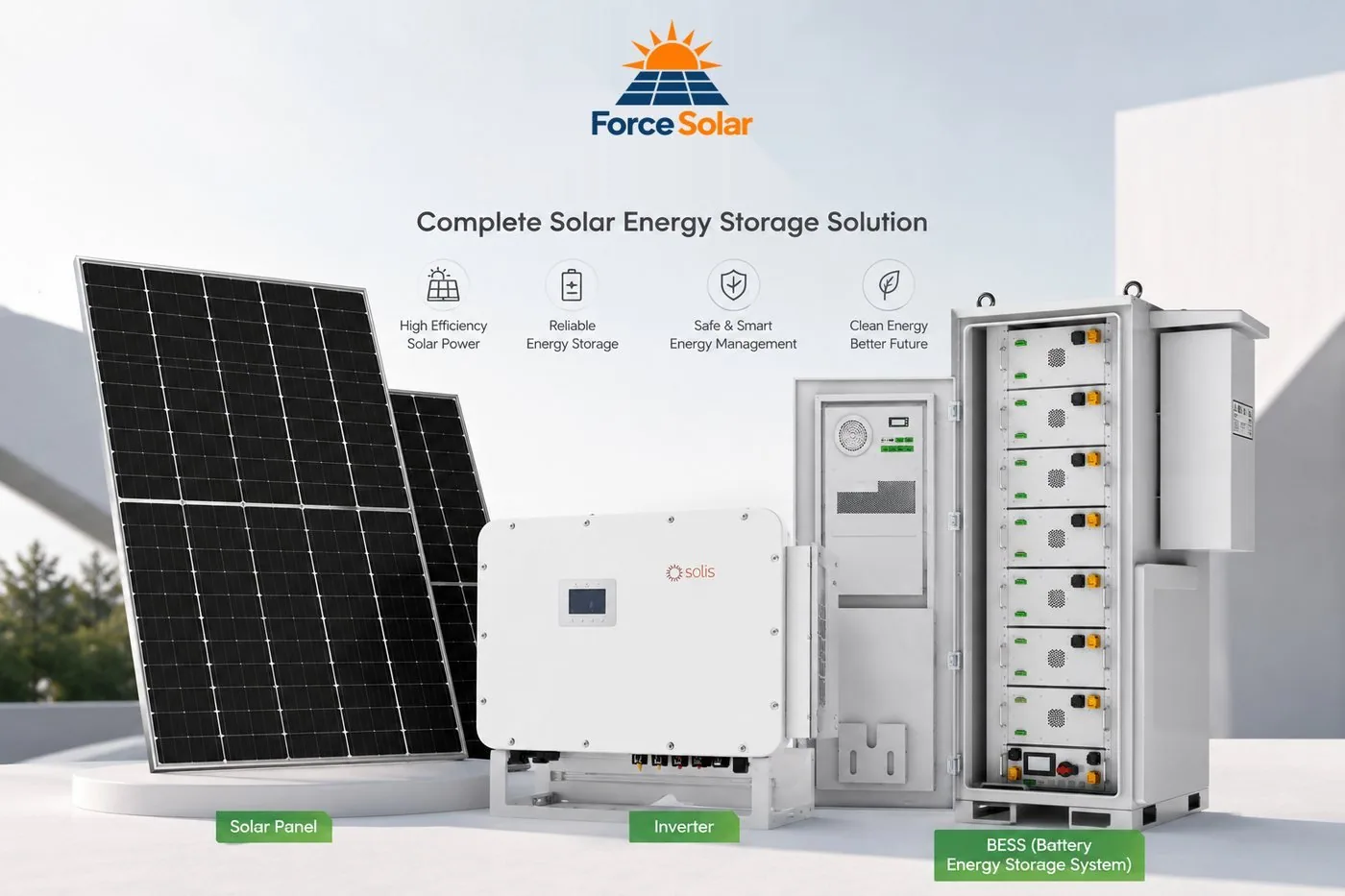

40KVA 40kW+96kWh BESS Solar System
40kW of power, 96kWh of LFP storage — backup and solar shifting in one cabinet.
Solar System for House
Rooftop PV, a hybrid inverter and LFP storage configured around household energy use and outage priorities.
Solar System for Farm
Solar for irrigation pumping, cold rooms and farm buildings.
Solar Power System for Hotel
Solar plus storage that protects the guest experience.
Solar System for Factory
Rooftop or ground PV from 100kW to 1MW+, engineered around shift patterns, demand peaks and grid reliability.

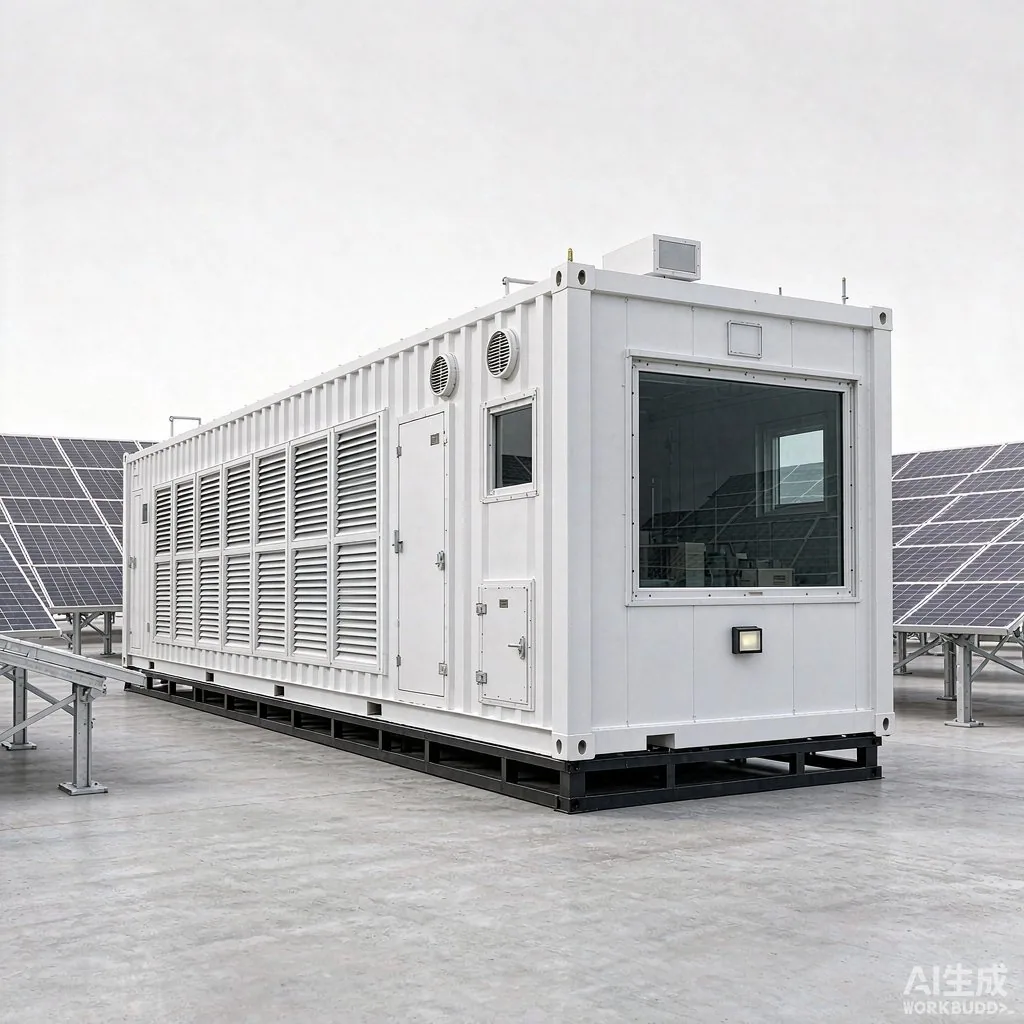

1MW 1000kVA Solar System
Complete 1MW solar power system for industrial sites — hybrid-ready.
15KW 15KVA + 50KWH Solar System with Battery
15kW of three-phase power with 50kWh of LFP storage in a single cabinet.
Continue browsing.
The same product can appear in several categories — storage, power rating and application overlap by design.
BESS models at a glance
Six cabinet models cover 96kWh to 261kWh. Usable energy is the nominal capacity taken to 90% depth of discharge, which is the number that decides how long a bank actually carries load.
| Model | Rated power | Nominal capacity | Usable at 90% DoD | Cycle life |
|---|---|---|---|---|
| FS-BESS-96 | 40kW / 40kVA | 96kWh LiFePO4 | 86.4kWh | 6,000+ cycles at 80% EOL |
| FS-BESS-112 | 50kW / 50kVA | 112kWh LiFePO4 | 100.8kWh | 6,000+ cycles at 80% EOL |
| FS-BESS-193 | 80kW / 80kVA | 193kWh LiFePO4 | 173.7kWh | 6,000+ cycles at 80% EOL |
| FS-BESS-209 | 100kW / 100kVA | 209kWh LiFePO4 | 188.1kWh | 6,000+ cycles at 80% EOL |
| FS-BESS-215 | 100kW / 100kVA | 215kWh LiFePO4 | 193.5kWh | 6,000+ cycles at 80% EOL |
| FS-BESS-261 | 125kW / 125kVA | 261kWh LiFePO4 | 234.9kWh | 6,000+ cycles at 80% EOL |
Usable energy equals nominal capacity multiplied by 90% depth of discharge. Containerised projects extend the same architecture to 5MWh; the models above are the standard cabinet sizes.
Not sure which category fits?
Send the load profile, grid conditions and destination — we will name the architecture and the bill of materials.
Request a system proposal
